| MODEL NAME | 8500R |
| MATERIAL | OPTICAL |
| CPU | 120MHz DSP |
| FLASH | 16KB |
| SoC | RTOS |
| IMAGE QUALITY | 0.3 MILLION PIXELS CMOS |
| SUNLIGHT OPERATION | WHITE FILED, GENERAL SUNLIGHT |
| WATER SPLASH | YES |
| CARD READER | 125KHz EM & 13.56MHz MIFARE |
| OPERATION SYSTEM | WINDOWS2000/XP/2003/VISTA/7/8(32/64Bit) |
| LED | GREEN |
| POWER VOLTAGE | 5V (USB) |
| POWER CURRENT | 300mA |
| COMMUNICATION | USB2.0 / USB1.1 / USB 1.0 |
| INTERFACE SOCKET | USB TYPE A |
| IMAGE RESOLUTION | 500dpi |
| EFFECTIVE COLLECTING AREA | 13.24*15.7 mm |
| COLLECTING AREA | 15.4*8 mm |
| IMAGE SIZE | 280*360 PIXEL |
| DIMENSION | 124.5 * 102 * 34 mm (L*W*H) |
| GRAY LEVEL | 256 |
| WEIGHT | 0.27Kg |
| OPERATING ENIVORMENT | -20 °C ~ +50 °C; 90% r.h. |

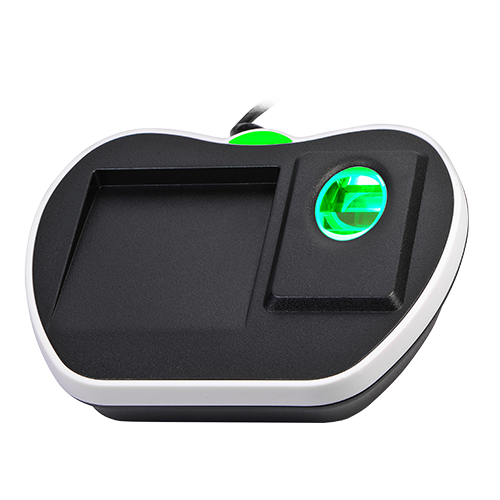

ZKTECO USB CONSOLE – 8500R
ZK8500R is a USB fingerprint scanner and card issue device that provides a simple and efficient way to register user fingerprints and card numbers with ZKTeco Software. This device can capture fingerprint image or read card serial number (ID/Mifare) directly and upload to the system by USB interface. ZK8500R would save money as it can work as ZK4500+CR10E+CR10M, and also can save time, especially when a high volume of users will be using ZKTeco systems on site.
