Specifications
Display 4.3’’ TFT Touch Screen
Face capacity 500 (1:N)
Fingerprint capacity 2000
ID Card capacity 10,000
Logs capacity 100,000
Algorithm Version ZKFaceVX 7.0 & ZKFinger VX10.0
2000mAh backup battery Optional
Communication TCP/IP, RS232/485
USB-HOST Two USB-Host
Wireless Wi-Fi Optional
Time attendance Standard functions Automatic Status Switch, Self-Service Query,
Work Code, T9 input, 9 digit user ID, DST, Photo-ID, Scheduled-bell
Access control interfaces for 3rd Party Electric Lock, Door Sensor, Exit Button
Wiegand Signal Output
Optional functions ID/Mifare Card, Extendable, GPRS, Wi-Fi, 3G, AMDS
Power supply DC12V 3A
Verification Speed ≤2 sec
Operating temp 0 °C- 45 °C
Operating Humidity 20%-80%
Dimension(W×H×D) 193.6×146.8×111 mm

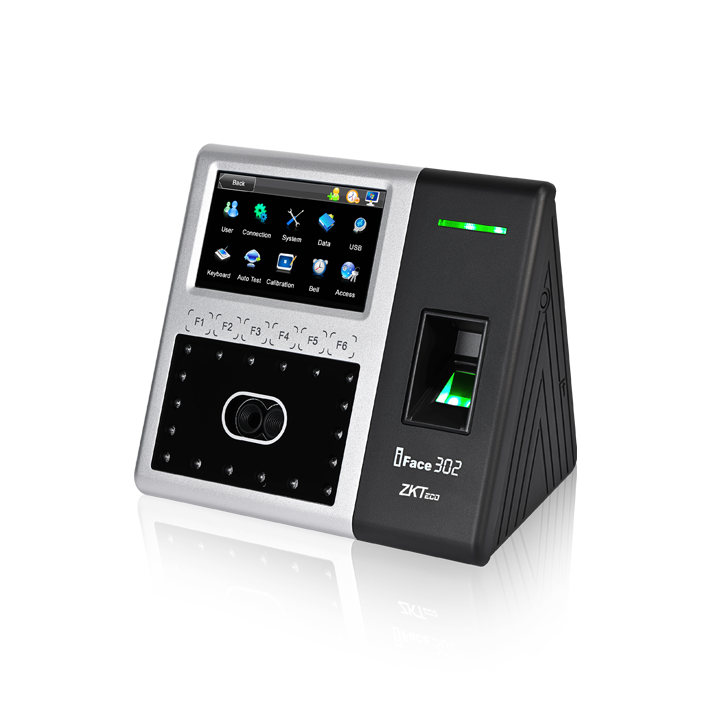

ZKTecho Finger Print Terminal – iFACE 302
Features
• Identification methods include Face,
Fingerprint/RFID/Password
• Elegant ergonomic design
• 4.3’’ TFT touch screen is user-friendly
and very intuitive
• 6 user-defined function keys
• Contact relays for door access control
(wires to door strike or 3rd party panel)
• Web server management software
via IE browser.
• Optional extendable scheduled-bell
• Infra-red optical system enables useridentification
in poorly lit environments
• Optional built-in battery backup provides
approx 4 hours continuous operation
• Optional built-in wireless Wi-Fi or GPRS for
wireless communication
• Built-in contacts for 3rd party electric lock,
door sensor, alarm, exit button,or bell
• Wiegand Output for connections to 3rd
party access control panels
