| Hardware Specifications | Description |
| Ports Type | 6×100Mbps network ports (RJ45), including 4 PoE ports |
| Standards | IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at |
| Switching Capacity | 1.2Gbps |
| Packet Buffer | 448K bit |
| Forwarding Performance | 0.90Mpps |
| MAC | 1K |
| Prior Ports | 1~2 |
| Power Supply | DC: 48/51V, powered by adapter (AC100-240V, 50/60Hz) |
| POE | Supported POE |
| MAX. PoE Power | Max capacity: 60W, Max capacity for single port: 30W |
| Storage Temperature | -40 °C ~ 70 °C |
| Operating humidity | 10%～90% (noncondensing) |
| Cooling Fans | 0 |
| Weight | 0.19KG |
| Dimensions (W×D×H) | 10710125mm |
| Storage humidity | 5%～90% (noncondensing) |
| Operating temperature | 0 °C ~ 40 °C (32 °F ~ 104 °F) |
| Indicator | POWER Steady on: AC input is normal, POWER Off: No AC input, No PoE Indicator, PoE-MAX off: The POE power supply power of the whole machine is less than 80% of the specification, PoE-MAX Steady on : The POE power supply power of the whole machine is greater than 85% of the specification, LINK/ACT Off: No link, LINK/ACT Steady on: Linked, LINK/ACT Flashing: Transmitting data |
| Working Mode | Default(Normal mode) : All ports can communicate with each other., EXTEND(Surveillance mode): Transmission distance up to 250 meters |

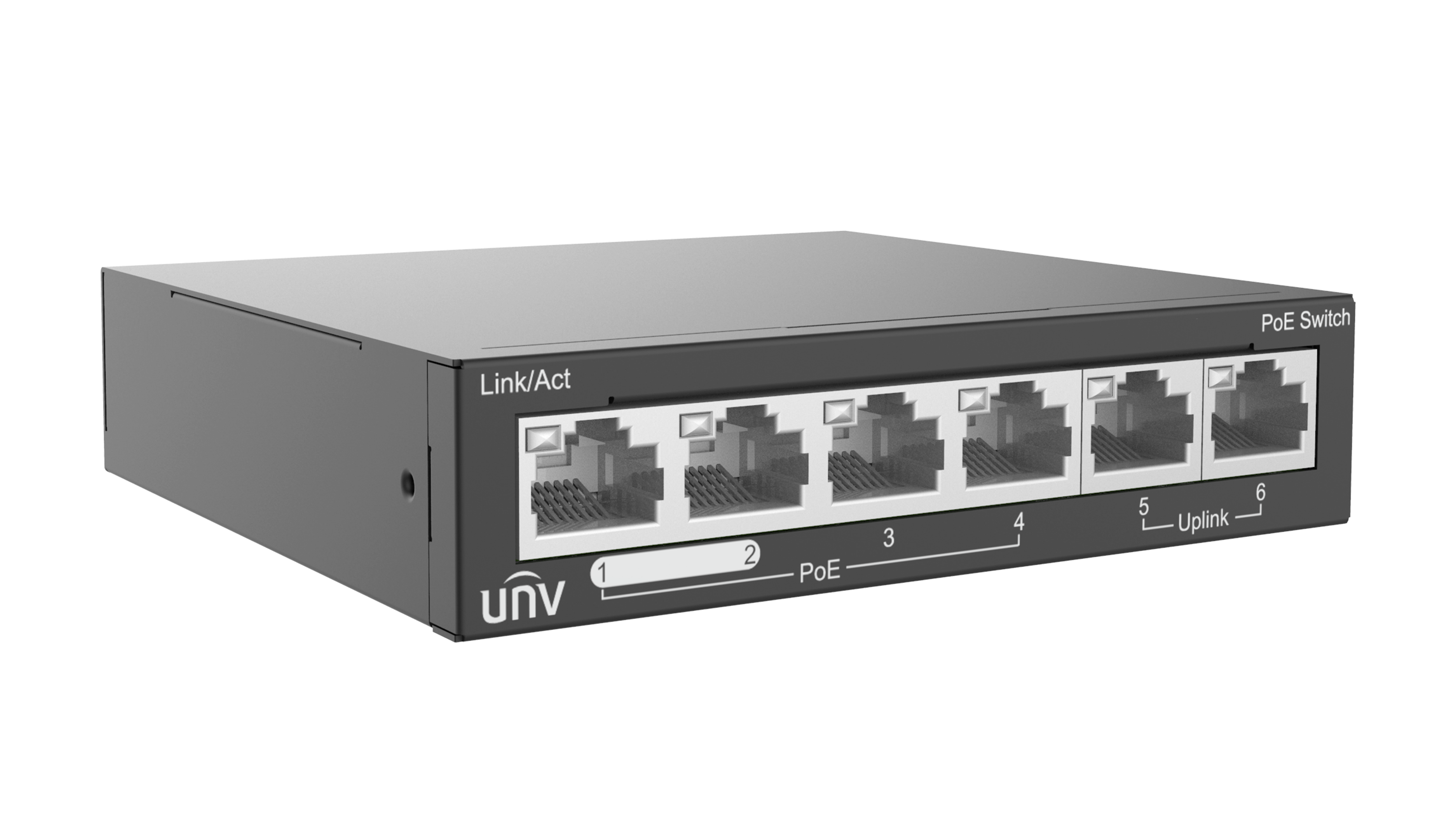

UNV – NSW2020-6T-POE-IN – Unmanaged Ethernet Switch(PoE)
MODEL-NSW2020-6T-POE-IN
Unmanaged Ethernet Switch(PoE)
• Multiple working modes to address your business needs: Default(Normal mode), EXTEND(Surveillance mode)
• Support port traffic control
• Support for secure mode, all downlink ports can communicate only with uplink ports
• Up to 250m transmission distance on surveillance mode
• Support buffer optimization
• All metal housing, safe and reliable
