| Hardware Specifications | Description |
| Ports Type | 4×1000Mbps PoE ports (RJ45)+1×1000Mbps ports(RJ45) |
| Standards | IEEE802.3, IEEE802.3u, IEEE802.3az, IEEE802.3x, IEEE802.3af, IEEE802.3at |
| Switching Capacity | 10Gbps |
| Forwarding Performance | 7.44Mpps |
| Packet Buffer | 1M Bit |
| MAC | 2K |
| Weight | <1Kg |
| Dimensions (W×D×H) | 140mm x 76.7mm x 27.7mm (5.5″×3″×1.1″) |
| Power Supply | AC: 100-240 V, 50/60 Hz |
| Max. Poe Power | Max capacity: 60W, Max capacity for single port: 30W |
| Cooling Fans | 0 |
| Storage Temperature | -40 °C ~ 70 °C |
| Operating Temperature | 0 °C ~ 40 °C (32 °F ~ 104 °F) |
| Operating humidity | 10%～90% (noncondensing) |
| Storage humidity | 5%～90% (noncondensing) |
| Indicator | PWR (Green), LNK/ACT (Green), PoE (Orange) |
| POE | Supported POE |
UNV - NSW2010-18GT2GP-POE - Ethernet Switch(POE)S
UNV - NSW2020-6T-POE-IN - Unmanaged Ethernet Switch(PoE)
UNV – NSW2010-5GT-POE – Switch(POE)

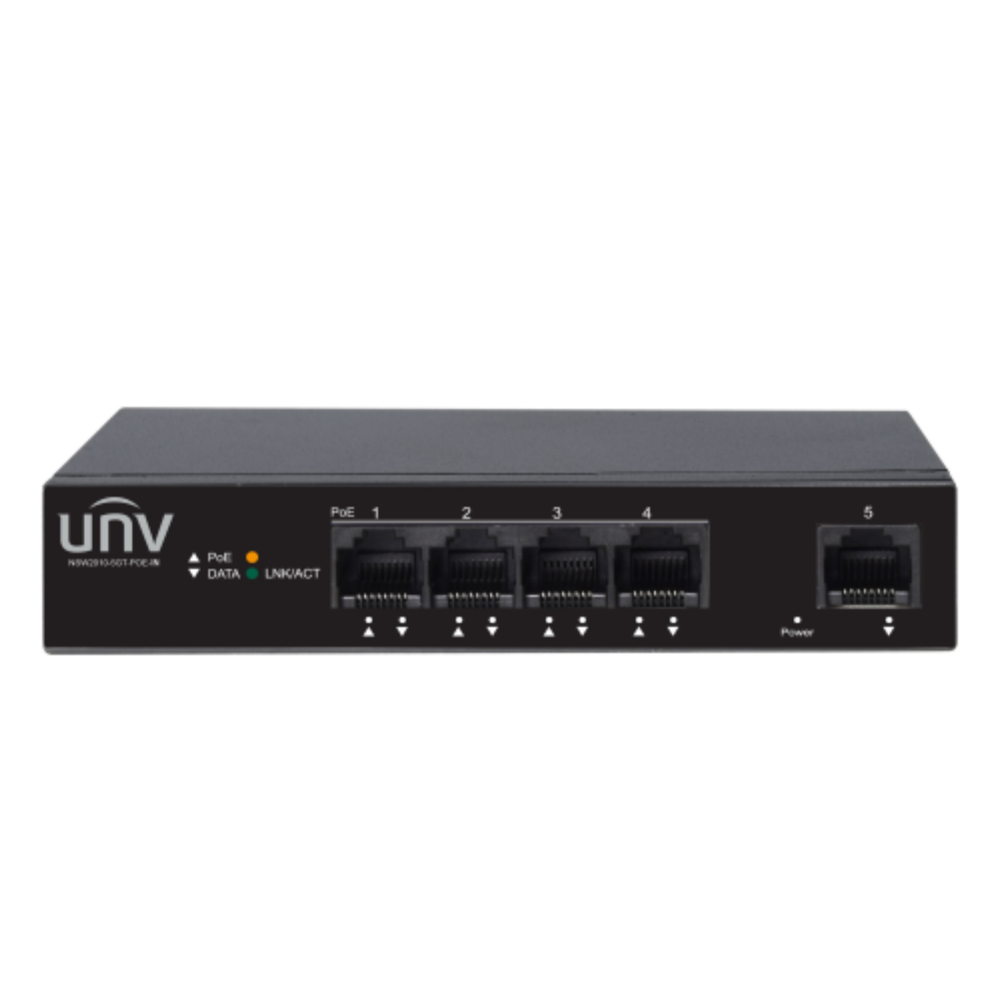

MODEL-NSW2010-5GT-POE-IN -UK
Ethernet Switch(POE)
• Support IEEE802.3 at standard, compatible with IEEE802.3 af by electrical equipment (PD)
• Supports PoE Power up to 30W for each PoE port;
• Auto detect power device; will not burned non-standard PoE device or normal PoE switch;
• Supports port power supply prioritization, guarantee the continuous power supply of key nodes;
• Supports IEEE802.3 x full duplex flow control and Backpressure half duplex flow control;
• Line-speed forwarding, intelligent identification
• Supports storage – and- forward for Data exchange;
