| Hardware Specifications | Description |
| Ports Type | 24×1000Mbps PoE ports (RJ45)+2×1000Mbps ports(RJ45)+2×1000Mbps ports（Combo） |
| Standards | IEEE802.3, IEEE802.3u, IEEE802.3z, IEEE802.3ab, IEEE802.3x, IEEE802.3af, IEEE802.3at, IEEE802.3az |
| Switching Capacity | 56Gbps |
| Forwarding Performance | 41.7Mpps |
| Packet Buffer | 4M bit |
| MAC | 8k |
| Power Supply | AC: 100-240 V, 50/60 Hz |
| POE | support POE |
| MAX. Poe Power | Max capacity: 370W, Max capacity for single port: 30W |
| Cooling Fans | 2 |
| Weight | <5kg |
| Indicator | PWR (Green), LNK/ACT (Green), PoE (Orange) |
| Dimensions (W×D×H) | 440mm x 207mm x 44mm (17.3″×8.1″×1.7″) |
| Storage Temperature | -40 °C ~ 70 °C |
| Operating Temperature | 0 °C ~ 40 °C (32 °F ~ 104 °F) |
| Storage humidity | 5%～90% (noncondensing) |
| Operating humidity | 10%～90% (noncondensing) |
| Working Mode | Default(Normal mode) : All ports can communicate with each other., VLAN(Secure mode): Downlink ports can communicate only with uplink ports., Extend(Surveillance mode): Transmission distance up to 250 meters. Downlink ports can communicate only with uplink ports. |

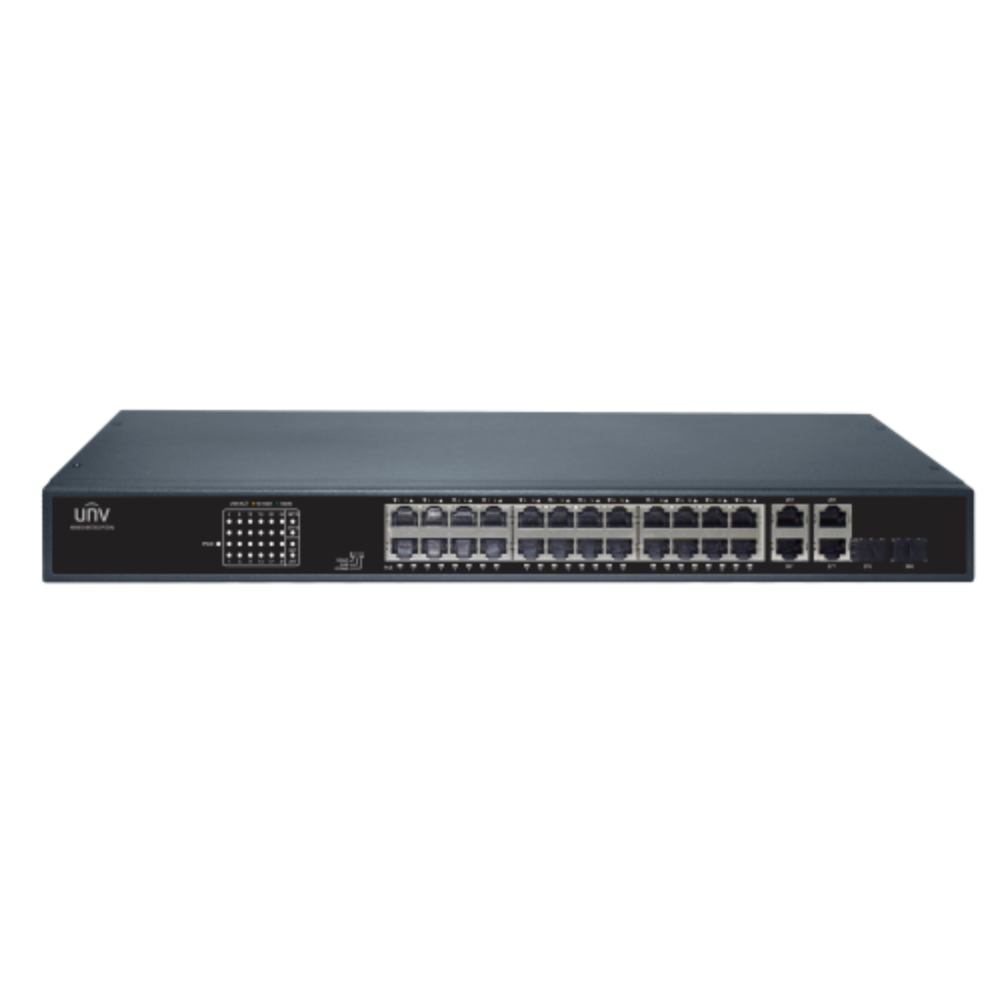

UNV-NSW2010-26GT2GC-POE-IN – Ethernet Switch(POE)
MODEL-NSW2010-26GT2GC-POE-IN
Ethernet Switch(POE)
• Support IEEE802.3 at standard, compatible with IEEE802.3 af by electrical equipment (PD)
• Supports PoE Power up to 30W for each PoE port;
• Auto detect power device; will not burned non-standard PoE device or normal PoE switch;
• Supports port power supply prioritization, guarantee the continuous power supply of key nodes;
• Supports IEEE802.3 x full duplex flow control and Backpressure half duplex flow control;
• Line-speed forwarding, intelligent identification
• Supports storage – and- forward for Data exchange;
