The ONV-H1008P switch provides power and data transmission from a network node through Cat.5 / 6 cables. 9 ports could fast connect with 10/100Mbps, 8 ports among them could supply power at the standard of IEEE802.3af. With the auto-sensing function, it could supply power to PD device (IEEE802.3af standard) only. What’s more, if the PoE device disconnected, it would stop supplying power. The switch features simple and reliable design, automatic identification of PoE supply voltage and power, speed, full duplex and Auto Uplink cable type.

This cost-effective switch provides network layout which need to simplify wireless access point (AP) and IP-based surveillance  network cameras to install in commercial network and home network. It is the ideal networking solution for work-groups and intelligent community fiber access.These devices away from electrical outlets are very suitable for hanging on the wall or ceiling. PoE eliminates the hassle for these devices, specially the electrical outlets. Connect the AC power connection to make those difficult device more flexible, and the installation cost minimization.

Product features:

Supply power to wireless AP and IP Camera through CAT 5/6 cable

9 * 10/100 Mbps auto-sensing RJ45 Ports, 1-8 port support PoE, meeting the standard of IEE802.3af/at

Meeting the standard of IEE802.3 10Base-t & IEEE802.3u 100Base-T

Flow Control: Full duplex based on IEEE802.3x, Half duplex based on Back Pressure

Support port auto-flip (Auto MDI/ MDIX)

Anti-thunder function for Uplink port (port 9), which is reaching level 2

Total PoE Power: 120W (Port 1 – 8)

Max PoE power for each port: 30W

Adopts store-and-forward method

All ports support line-speed switching (Frame size at the ranges of 64-1536)

No fan design, natural cooling feature.

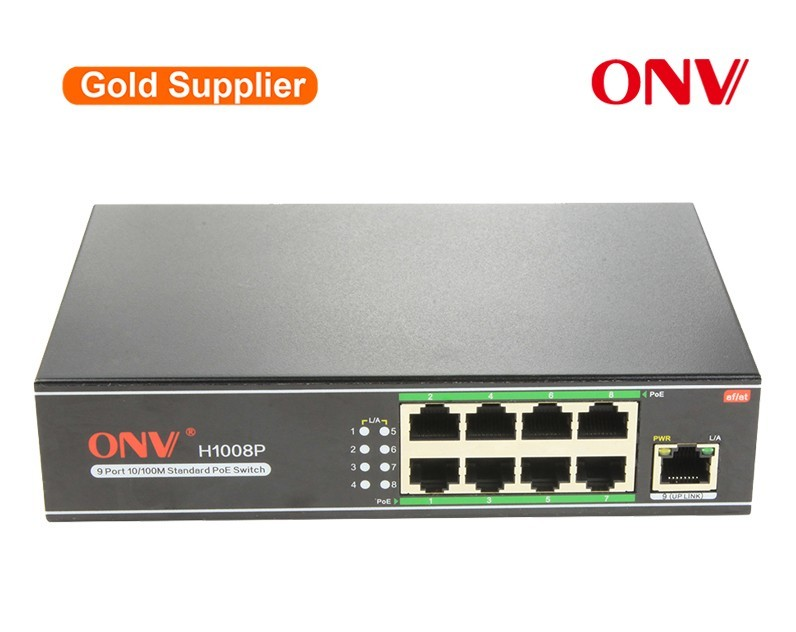

 Product Model: ONV-H1008P

Description: 9-Port 10/100M Standard PoE Switch. 8 PoE ports, 10/100M. PoE Standard IEEE802.3af/at. Total power is 120W.

Note: If connecting less than 4 port, the max power for each port could be reaching at 30W at IEEE802.3at.
