ONV POE SWITCH 7 PORT – 33007P

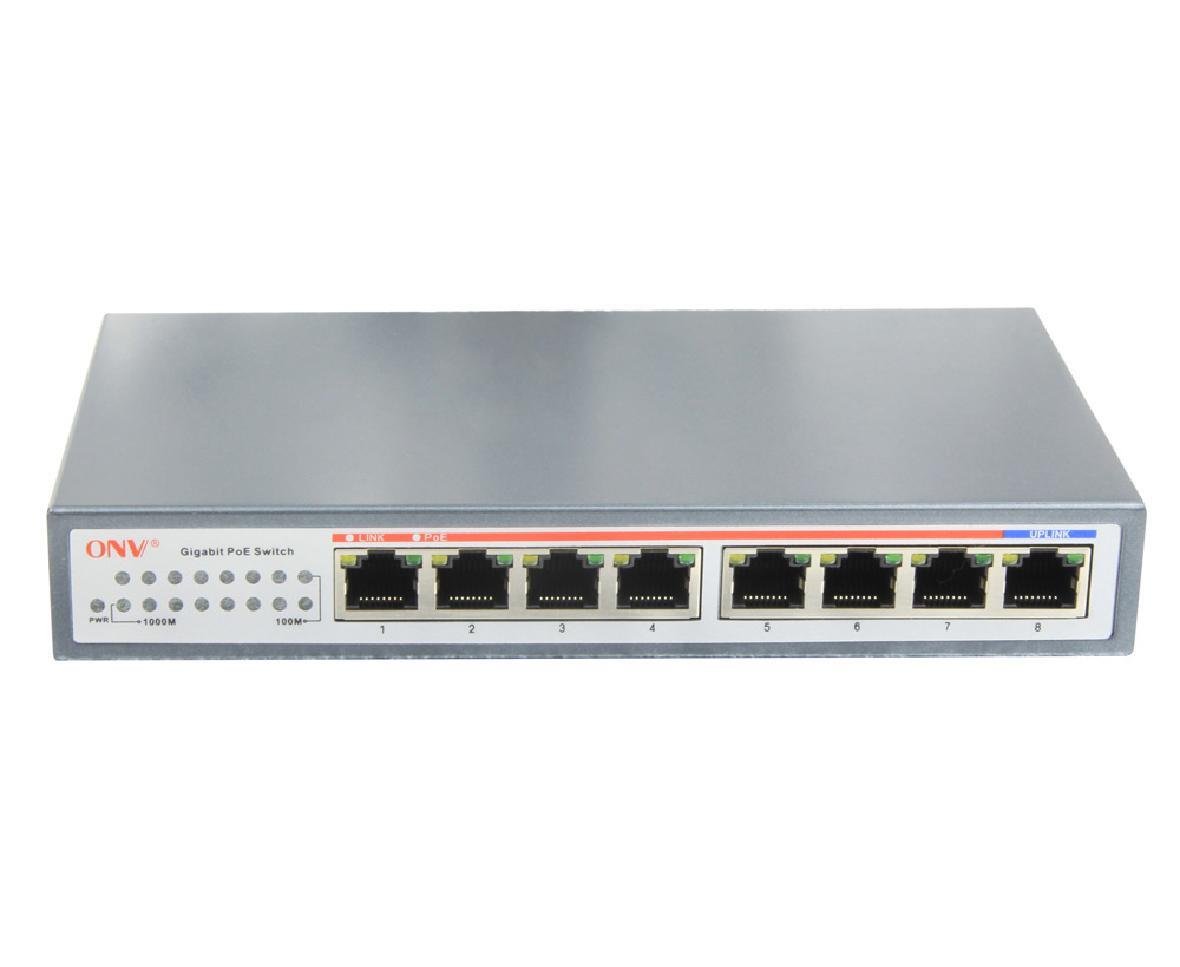

ONV-POE33007P PoE Switch

The ONV-POE33007P series is a full gigabit unmanaged PoE switch independently developed by ONV. It has 8*10/100/1000M RJ45 ports. Port 1-7 can support IEEE 802.3af/at standard PoE power supply.single port PoE power reaches 30W, and the maximum PoE output power is 110W (at-250W). As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, webcam, VoIP, visual intelligent building intercom through network cable, and meet the network environment that needs high-density PoE power supply. It is suitable for hotel, campus, factory dormitory and small and medium-sized enterprises.

Unmanaged model, plug and play, no configuration, easy to use.

Free worldwide shipping on all orders over $50

  • 30 days easy returns
  • Order yours before 2.30pm for same day dispatch
Guaranteed Safe Checkout

ONV POE SWITCH 7 PORT - 33007P
ONV POE SWITCH 7 PORT – 33007P

TECHNICAL SPECIFICATION



Model

ONV-POE33007P

ONV-POE33007PN

ONV-POE33007PN-at
Interface 7*10/100/1000Base-T PoE port (Data/Power)

1*10/100/1000Base-T uplink RJ45 ports (Data)
POE port Port1-7 can support POE @ IEEE802.3af/at
Network Protocol IEEE802.3 10BASE-T;  IEEE802.3i 10Base-T;

IEEE802.3u 100Base-TX

IEEE802.3ab 1000Base-T

IEEE802.3x
PoE Standard IEEE802.3af/at
Ethernet Port Feature 10/100/1000 Base-T(X),auto-sensing,full/half duplex MDI/MDI-X self-adaption
Forwarding Mode Store and Forward(Full Wire Speed)
Switching Capacity 16Gbps (Non-blocking)
Forwarding

Rate@64byte

 11.9Mpps
MAC

Address Table

 8K
Buffer Memory 2M
Twisted Pair Transmission 10BASE-T:Cat3,4,5 UTP(≤100 meter);

100BASE-TX: Cat5 or later UTP(≤100 meter) ;

1000BASE-T:Cat5e or later UTP(≤100 meter)
Power Supply Pin Default: 1/2(+),3/6(-); Optional: 4/5(+),7/8(-)
Max /Average Power Per Port 30W/15.4W 30W/30W
Total PWR / Input Voltage 110W (DC52V) 130W (AC100-240V) 250W (AC100-240V)
Power Consumption Standby:<5W; Full Load:<110W Standby:<6W; Full Load:<120W Standby:<7W; Full Load:<240W
LED Power indicator: PWR (green); Data indicator: Link(yellow); POE indicator: PoE (green); speed indicator:100M,1000M (green)
Power Supply External power supply

AC100~240V 50-60Hz 2.0A

 Built-in power supply, AC 100~240V 50-60Hz 2.3A Built-in power supply, AC 100~240V 50-60Hz 4.1A
Operation TEMP / Humidity -20~+55°C; 5%~90% RH Non-condensing
Storage TEMP / Humidity -40~+75°C; 5%~95% RH Non-condensing
Dimension(L*W*H) 190.5*105*29mm 270*181*44.5mm
Net /Gross Weight <0.5kg /<1.0kg <1.2kg /<1.8kg <1.4kg /<2.1kg
Installation Method desktop type ,wall mounted desktop type ,wall mounted ,19 inch 1U cabinet installation
Port lightning protection / protection level Port lightning protection : 4KV 8/20us;

Protection level: IP30
Certification CCC; CE mark, commercial; CE/LVD EN60950;  FCC Part 15 Class B; RoHS;
Warranty 3 years , lifelong maintenance.
