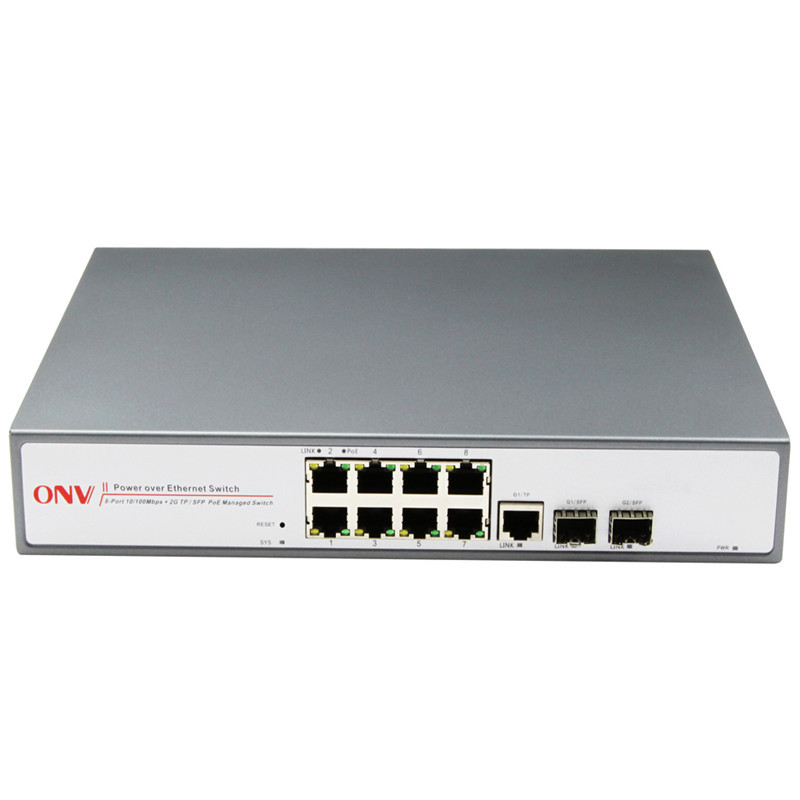

ONV POE SWITCH 8 PORT – 31108PF

Product Name: PoE Switch with Eight 10/100M Ports and Gigabit Combo Port
Product Model : ONV-POE31108PF
Connector: 8x 10/100M copper cable RJ45 PoE ports(all ports support MDI/MDIX)
1x gigabit optical multiplexing port, 1x optical port
Transfer Mode Store-And-Forward
Network Medium: 10BASE-T: Cat3/4/5 UTP(≤100 meter)
100BASE-TX: Cat5 or more UTP(≤100 meter)
Single mode(9/125um) optical transmission, transmission distance:
25km(double optical default, single optical alternative)
Performance
Specifications
Bandwidth: 8.8Gbps (non-blocking)
Network Latency (100 to 100M bps): maximum delay less than 20
microseconds
Packet Buffer Memory: 2.75M
Address Database Size: 4K
MTBF: 100,000 hours
Network Protocols
and Standards
IEEE 802.3i 10BASET; IEEE 802.3u 100BASETX; IEEE 802.3x
Flow Control; IEEE 802.3af DTE Power via MDI; IEEE 802.3af
LEDs Status
System: power supply;
Every Port: connecting, PoE working status
Power
Maximum PoE switch power:130 W
PoE port power:15.4 W(1～8 port)
Power input: AC100-240V 50/60Hz; (every country use a custom
power plug)
Dimensions/Weight
Dimensions: 279x210x44mm
Weight: 1.61kg
Working Environment
Operating Temperature: -20 ° ~ 55 ° C;
Storage Temperature: -20 ° ~ 75 ° C;
Humidity: 10% ~ 90%, non-condensing;
Storage Humidity: 10% ~ 95%, non-condensing;
Working Altitude: 3000 m (10,000 ft);
Storage Altitude: 3,000 m (10,000 ft)
Radiation
CE mark, commercial
FCC Part 15 Class B
VCCI Class B
EN 55022 (CISPR 22), Class B
Safety
CE Mark ,commercial
CE/LVD EN60950
