Specifications

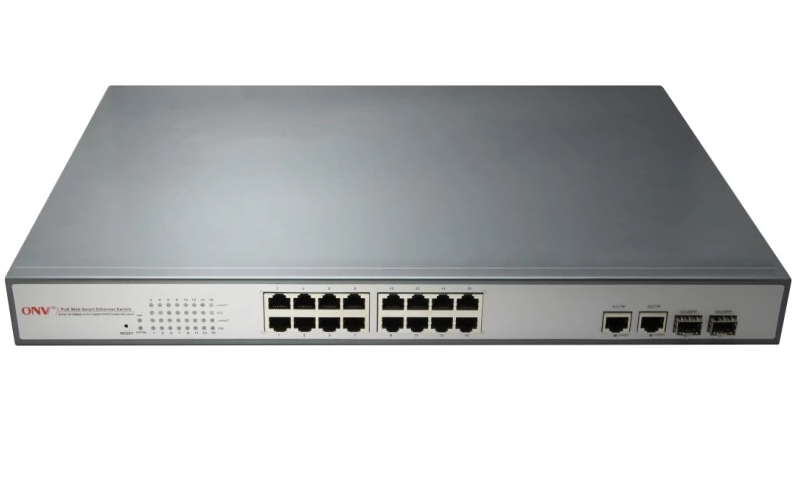

| Product | 16-Port PoE switch with 2 Gigabit TP/SFP Combo Ports |
| Type | POE31016P |
| Network Ports | 16 10/100Mbps RJ45 PortsAUTO Negotiation/AUTO MDI/MDIX |
| Power Pin Assignment | Data provided over pairs over 1/2and 3/6 ,Power over spare pairs4/5(+) and 7/8 (-) |
| PoE Distance | 100m |
| Transmission Method | Store-And-Forward |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
| 100BASE-TX: UTP category 5, 5e cable (maximum 100m) | |
| Performance Specifications | Bandwidth:7.2 Gbps |
| Network latency:Less than 20 μs for 64-byte frames in store-and-forward mode for 100 Mbps to 100 Mbps transmission | |
| Buffer memory:8M embedded memory per unit | |
| Address database size:8,000 media access control (MAC) addresses per system | |
| Addressing:48-bit MAC address | |
| Mean Time Between Failure (MTBF):190,000 hours (~ 21 years) | |
| Acoustic Noise: 0 dB | |
| Network Protocol and Standards | IEEE 802.3i 10BASET |
| IEEE 802.3u 100BASETX | |
| IEEE 802.3x Flow Control | |
| IEEE 802.1af DTE Power via MDI | |
| IEEE 802.3af | |
| Status LEDs | System: Power, PoE Maximum Power |
| Per Port: Link, Activity, Speed, PoE Active, PoE Fault | |
| Power Supply | Total Power Consumption: 250 W maximum |
| PoE Watt budget: 202W | |
| IEEE802.3at Power Consumption: 202W maximum (Ports 1 – 8) | |
| AC110~265V 50Hz | |
| Physical Specifications | Dimensions (H x W x D):44 x315 x 440mm |
| Weight:2.25kg | |
| Environmental Specifications | Operating temperature: 0 to 55°C |
| Storage temperature: -20 to 75°C | |
| Operating humidity: 90% maximum relative humidity, non-condensing | |
| Storage humidity: 95% maximum relative humidity, non-condensing | |
| Operating altitude: 10,000 ft (3,000 m) maximum | |
| Storage altitude: 10,000 ft (3,000 m) maximum | |
| Electromagnetic Emissions | CE mark, commercial |
| FCC Part 15 Class B | |
| VCCI Class B | |
| EN 55022 (CISPR 22), Class B | |
| Safety | CE Mark ,commercial |
| CE/LVD EN60950 |
