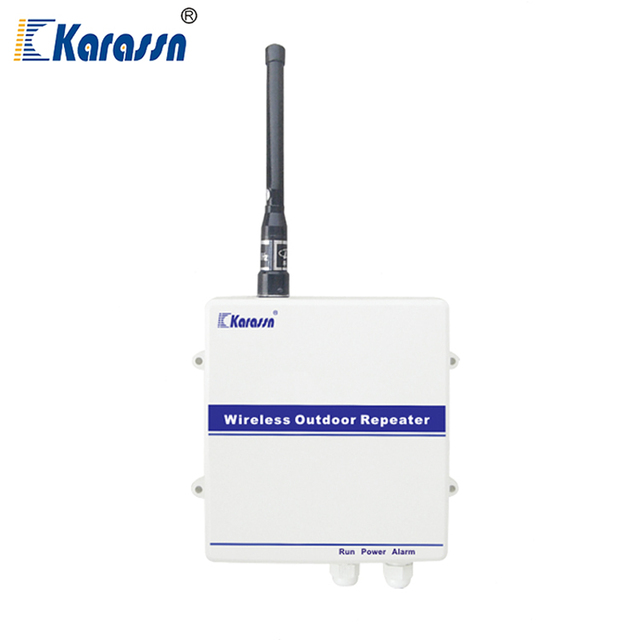

KARASSN – KS-52B Wireless Outdoor Repeater (433mhz To 315mhz)

MODEL- KS-52B Wireless Outdoor Repeater (433mhz To 315mhz)

Function：

*Two groups of output for NO/ NC. It can be used in the devices of linkage alarms or sirens.
*Low battery alert.
*Suitable for outdoor environment and waterproof.
*Own 2 wired zones, which can make NO/NC by the end-of-line resistances.
*Transmit 8 remote controllers and 24 detectors, the 24 detectors are correspondingly to
*24 wireless zones of the alarm system.
*Report the state of Arm/ Disarm to the alarm panel.

Technical Parameter:

*Working voltage: AC 220V±15%; DC 15V 1.5A
*Standby power: 12V (Optional battery: 12V 1.3Ah lead-acid battery)*Static current: ≤20mA
*Remit current: ≤400mA
*Time to linkage alarm of siren: 30s
*Modulation: FM
*DC output: 13.8V 200mA
*Wireless transmitting distance: 3～10kms (in open area)
*Wireless transmit distance: ≥800m (in open area)
*Working temperature: -20℃～+60℃
*Hold temperature: -30℃～+65℃
*Receive frequency: 433.92MHz Transmit frequency: 315.65MHz
