Product Overview

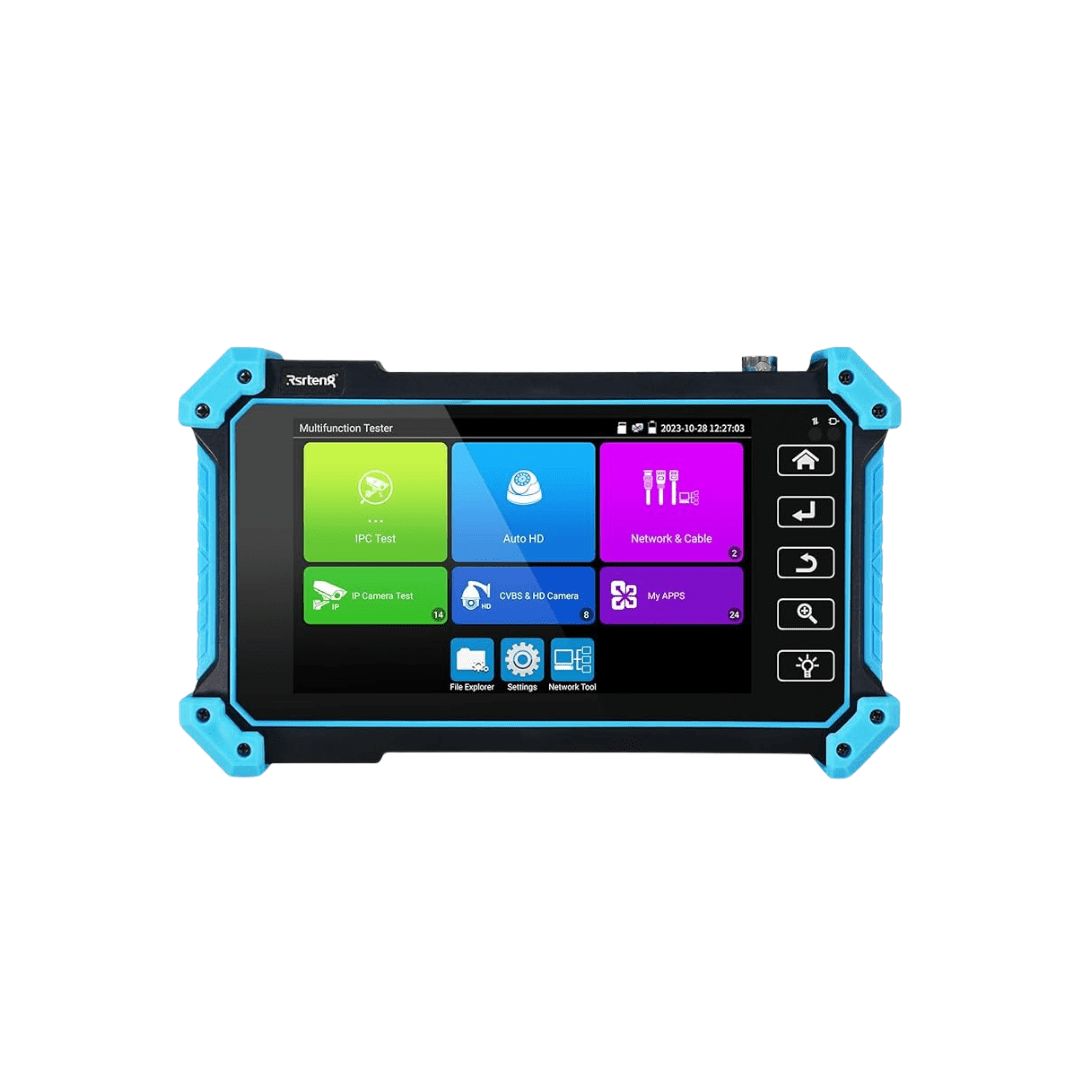

The IPC-5100 Plus is a versatile and high-performance CCTV tester designed for professionals involved in the installation, maintenance, and troubleshooting of security camera systems. Whether you’re working with IP network cameras or coaxial HD surveillance cameras, this tool is engineered to simplify and expedite your workflow.
🔧 Key Features
-
Display: 5-inch IPS touchscreen with a resolution of 1920×1080 pixels, ensuring clear and detailed visuals.
-
Camera Compatibility:
-
IP Cameras: Supports up to 12MP resolution.
-
Coaxial HD Cameras: Supports up to 8MP resolution for AHD, CVI, TVI, and CVBS formats.
-
SDI Cameras: Not supported
-
-
Connectivity & Testing Tools:
-
PoE (Power over Ethernet): Detects and tests PoE functionality.
-
Cable Testing: Includes UTP cable testing capabilities.
-
Wi-Fi: Supports wireless network testing.
-
Power Output: Provides DC 12V power output for camera testing.
-
RS485: Supports PTZ control via RS485.
-
HDMI/VGA Input: Can be used as a display for NVR and DVR testing.
-
-
Operating System: Android-based, allowing for app installations and updates via Wi-Fi
-
Additional Features:
-
Built-in speaker and microphone.
-
Supports multiple languages.
-
Portable design with a protective case.
-
