FEATURES

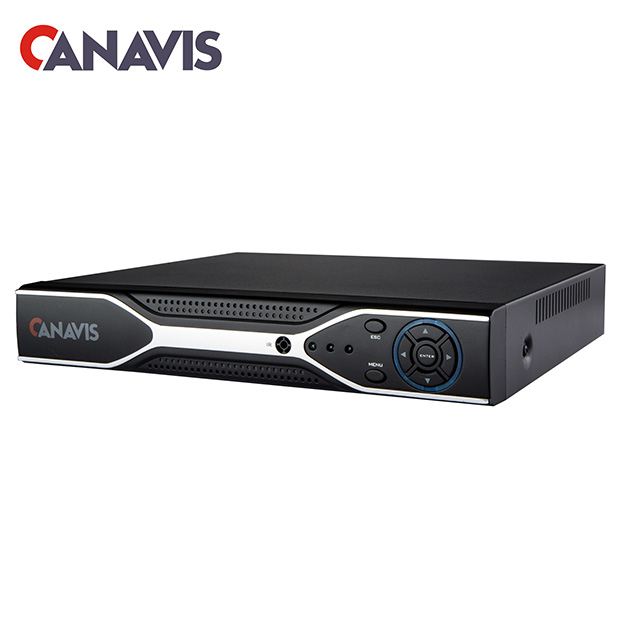

1. High performance 16CH DVR, without network limitation, plug and play. 4ch 1080N 3-in-1 DVR (1080P/5MNVR+1080N AHD+960H CVBS)
2. Maximum support 6T*2 Hard DriveS; P2P plug play function, simple and convenient.
3. No time delay (in LAN).
4. Remote viewing: Select the Main Menu > System Information > Cloud services. Then scanning the QR-code to download APP (XMEYE) or directly in the app market search and download the APP (XMEYE). Scanning the DVR recorder serial number (Right-click the mouse to select guide) and make sure the NAT status is connected (Please make sure the IP address of DVRis same segment as your router’s ).
5. * H.264 Hardware Compression
   * No Hard Drive is Installed and Configured
   * Video Output: VGA / HDMI
   * Other Video Output: BNC Port
   * Audio Input / Output: RCA 2/RCA 1
   * Signal System: NTSC / PAL
   * Display: 25fps
   * Record: 25 fps
   * Record Mode: Manual/Motion Detection/Time Schedule
   * Display Mode: Each/All/Auto Switch/Hidden
   * Playback Search: Time & Date, Event List
   * Network:RJ45 TCP/IP or DDNS
   * Remote Access: LAN or IE Browser
   * PTZ Control: RS-485
   * HDD Port: 1
   * HDD Interface: SATA, Supports between 320GB to 6TB
   * Power Supply: 12V/2A
   * OSD Languages: English
   * Support Remote View via Android, iPhone, iPad, Windows, Mac OS
   * Plug-n-Play
