| Video Mode | TVI, CVI, AHD & CVBS switchable |
| Pick-up Element | 1/2.5’’ CMOS |
| Number of Pixels | 2592(H)×1944(V) |
| Video Frame Rate | TVI/AHD: 20 fps@2560×1944P / CVI: 30 fps@2560×1440P |
| Min. Illumination | 0.01Lux / F1.6 (AGC ON), 0 Lux (IR LED ON) |
| S/N Ratio | 62dB |
| Shutter Speed | AUTO / Manual (1/25-1/50,000s) |
| Lens | f3.6mm/F1.6v |
| Lens Angle | 99.4° (Horizontal) / 50.7° (Vertical) / 118.7° (Diagonal) |
| IR LED | 18 units |
| IR Effective Distance | 25 meters |
| Day & Night Mode | Auto / Color / (B/W) / EXT |
| Microphone Built-in | YES (TVI Mode available) |
| Noise Reduction | 2D NR |
| White Balance | ATW / Manual |
| AGC | YES |
| BLC | YES |
| WDR | D-WDR |
| Flip | YES |
| Mirror | YES |
| IP Rating | IP67 |
| Operating Temperature | -20℃ ~ 60℃ |
| Power Source (±10%) | DC12V |
| Power Consumption (±10%) | < 5W |
| Net Weight (g) | 327 |
| Optional Bracket / Junction Box | AVA126-WHKT / AVA156-WHKT / AVA456-BBKT |
AVTECH - MODEL - DGC2205ATW 2MP 4-in-1 AV Color Dome Camera
AVTECH - DGC5204AFW 5MP 4-in-1 AV Color Dome Camera

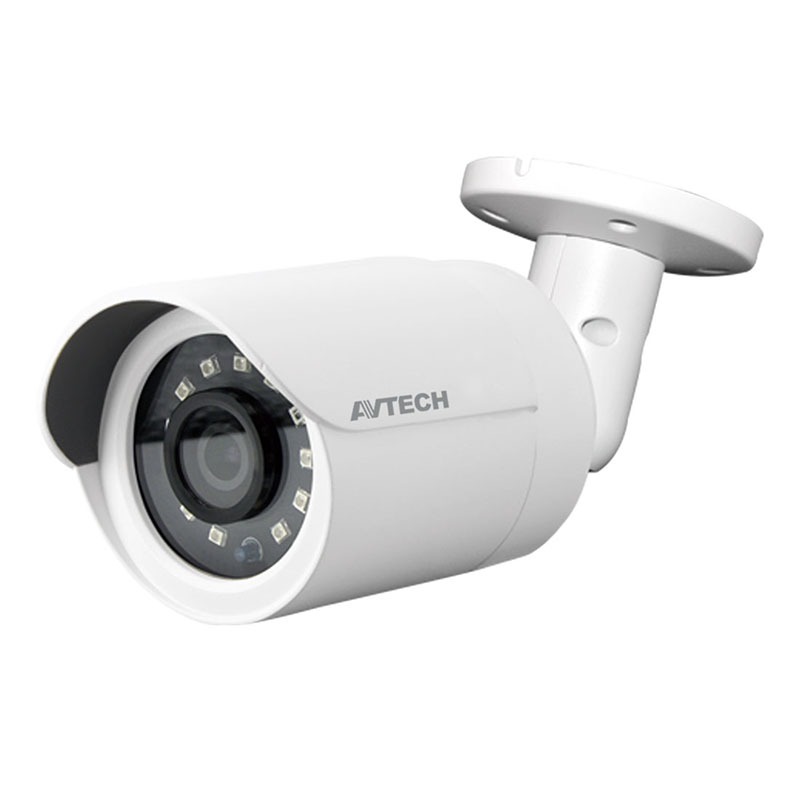

AVTECH – MODEL – DGC5104AF – 5MP 4-in-1 IR Bullet Camera
FEATURES
1/2.5” CMOS Sensor with 5MP video output
Quadbrid video output with TVI, CVI, AHD & CVBS to fulfill different customers’ requirements
Low light sensitivity of 0.01 Lux / F1.6, 0Lux (IR LED ON)
Microphone built-in for audio recording
D-WDR to increase image recognizability in overexposure and dark areas
Day and night 24-hour surveillance with IR effective distance to 25 meters
IP67 for weather-proof application
Camera parameters adjustable when used with AVTECH HD CCTV DVR
