| Pick-up Element | 1/ 2.7” CMOS image sensor |
| Number of Pixels | 1930(H) x 1088(V) |
| Min. Illumination | 0.1 Lux / F1.8, 0 Lux (IR LED ON) |
| S/N Ratio | More than 48dB (AGC OFF) |
| Shutter Speed | 1/30 (1/25) sec ~ 1/720000 (1/600000) sec |
| Lens | f3.6mm / F1.8 |
| Lens Angle | 96° (Horizontal) / 50° (Vertical) / 116° (Diagonal) |
| IR LED | 4 units |
| IR Effective Distance | Up to 30 meters |
| IR Shift | YES |
| Day & Night Mode | YES |
| IRIS Mode | AES |
| White Balance | AUTO / USER / PUSH / 8000K / 6000K / 4200K / 3200K |
| AGC | Adjustable |
| Sharpness | Adjustable |
| Flickerless | Adjustable |
| IP Rating | IP66 |
| Operating Temperature | -25℃ ~ 50℃ |
| Operating Humidity | Less than 60% relative humidity |
| Power Source (±10%) | DC12V / 1A |
| Current Consumption (±10%) | 170 mA (IR LED OFF) / 400 mA (IR LED ON) |
| Net Weight | (kg) 0.94 |

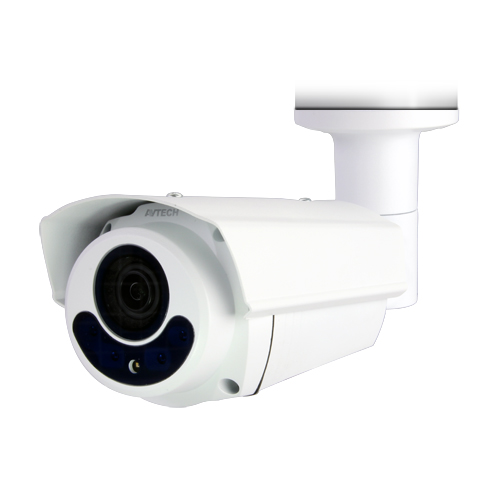

AVTECH – HD 1080p IR BULLET CAMERA – MODEL – DGC1205
2.7” CMOS Sensor with 1080P video output
Low light sensitivity of 0.1 Lux / F1.8, 0Lux (IR LED ON)
New IR technology adapted to enhance brightness performance at night
Day and night 24-hour surveillance with IR effective distance up to 30 meters
IP66 for weather-proof application
Camera parameters adjustable when used with AVTECH HD CCTV DVR
