| Video Mode | AHD / TVI / CVI switchable |
| Pick-up Element | 1/3″ CMOS |
| Number of Pixels | 1920(H)×1080(V) |
| Video Frame Rate | 1080P@25/30fps |
| Min. Illumination | 0.01Lux / F2.0 (AGC ON), 0 Lux (IR LED ON) |
| S/N Ratio | 50dB |
| Shutter Speed | AUTO |
| Lens | f3.6mm/F2.0 |
| Lens Angle | 76° (Horizontal) / 42° (Vertical) / 91° (Diagonal) |
| IR LED | 18 units |
| IR Effective Distance | 20 meters |
| Day & Night Mode | YES / NO |
| Noise Reduction | 3D NR |
| White Balance | AUTO / MANUAL |
| AGC | AUTO |
| BLC | YES |
| WDR | DWDR |
| Mirror | YES |
| IP Rating | IP66 |
| Operating Temperature | -10℃ ~ 60℃ |
| Operating Humidity | RH95% Max |
| Power Source (±10%) | DC12V |
| Current Consumption (±10%) | 550mA |
| Net Weight | (g) 380 |
AVTECH - 2MP 3 IN 1 DOME CAMERA WITH WARM LIGHT LED - MODEL - 2003FW
AVTECH - 2MP 3IN 1 BULLET CAMERA WITH WARM LIGHT LED - DGC2103FW

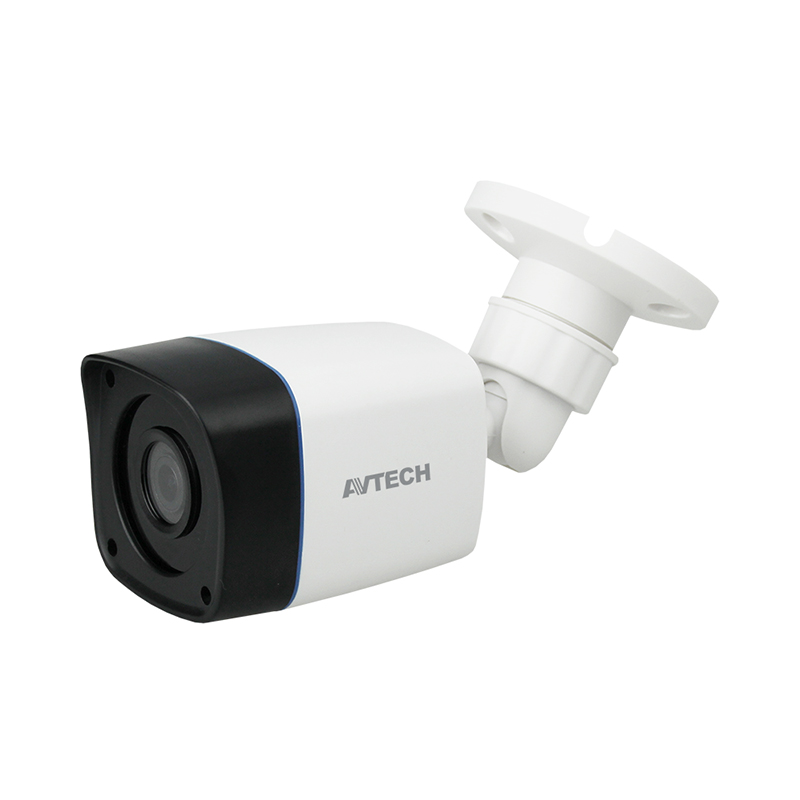

AVTECH – 2MP 3IN 1 IR BULLET CAMERA – DGC2103F
FEATURES
1/3” CMOS Sensor with 2MP video output
Tribrid video output with TVI, CVI & AHD to fulfill different customers’ requirements
Low light sensitivity of 0.01 Lux / F2.0, 0Lux (IR LED ON)
DWDR to increase image recognizability in overexposure and dark areas
Day and night 24-hour surveillance with IR effective distance to 20 meters
Camera parameters adjustable when used with AVTECH HD CCTV DVR
