| Bands |
|---|

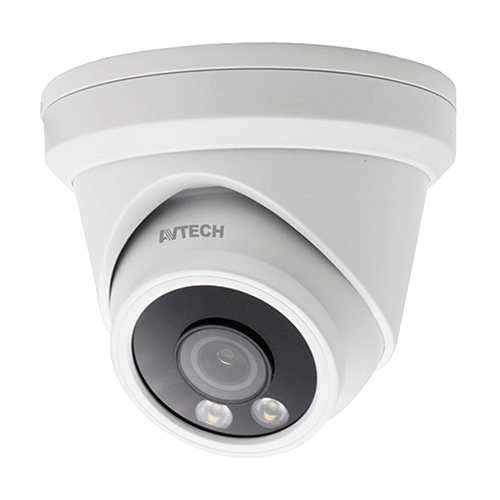

5MP / Warm Light LED / Microphone built-in)
| MODEL DGC5204AFW | |
|---|---|
| Video Mode | TVI, CVI, AHD & CVBS switchable |
| Pick-up Element | 1/2.5’’ CMOS |
| Number of Pixels | 2592(H)×1944(V) |
| Video Frame Rate | TVI/AHD: 20 fps@2560×1944P / CVI: 30 fps@2560×1440P |
| Min. Illumination | 0.01Lux / F1.6 (AGC ON), 0 Lux (LED ON)) |
| S/N Ratio | 62dB |
| Shutter Speed | AUTO / Manual (1/25-1/50,000s) |
| Lens | f3.6mm/F1.6 |
| Lens Angle | 99.4° (Horizontal) / 50.7° (Vertical) / 118.7° (Diagonal) |
| Warm Light LED | 2 units |
| Effective Distance | 25 meters |
| Day & Night Mode | Auto / Color / (B/W) / EXT |
| Microphone Built-in | YES (TVI Mode available) |
| Noise Reduction | 2D NR |
| White Balance | ATW / Manual |
| AGC | YES |
| BLC | YES |
| WDR | D-WDR |
| Flip | YES |
| Mirror | YES |
| IP Rating | IP66 |
| Operating Temperature | (-20℃ ~ 60℃) |
| Operating Humidity | 10% – 90%RH |
| Power Source (±10%) | DC12V |
| Power Consumption (±10%) | < 5W |
| Net Weight (g) | 448 |
| Optional Bracket / Junction Box | AVA23BK-WBKT |
